High Temperature Stability
Good Exchangeability
Good Durability
Low Insertion Loss
High Back Reflection Loss

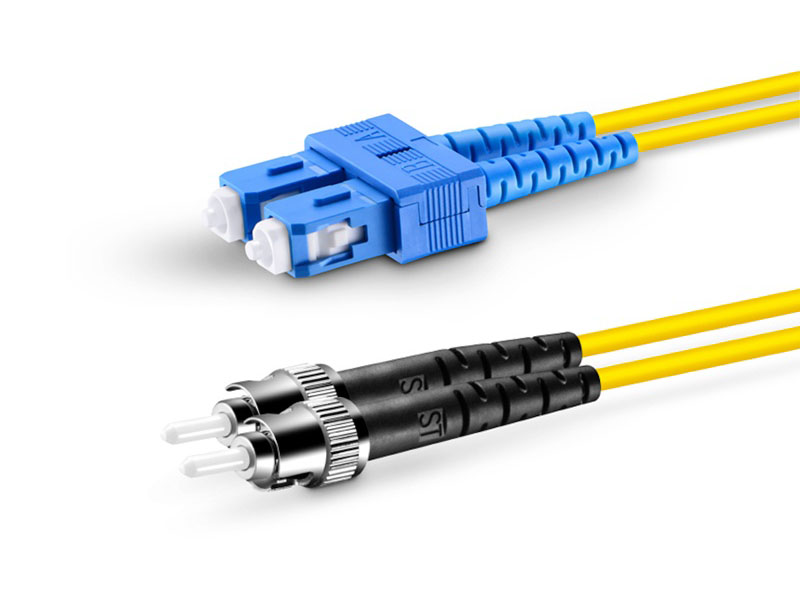

Connector | SC to ST | Polish Type | UPC to UPC |
Fiber Mode | OS2 9/125µm | Wavelength | 1310/1550nm |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Fiber Grade | G.657.A1(Compatible with G.652.D) | Min.Bend Radius | 10mm |
Attenuation at 1310nm | ≤0.36dB/km | Attenuation at 1550nm | ≤0.22dB/km |
Fiber Cout | Simplex | Cable Diameter | 2.0mm |
Cable Jacket | LSZH | Polarity | A(Tx)-B(Tx) |
Operating Temperature | -20℃ to +70℃ | Storage Temperature | -40℃ to +85℃ |
